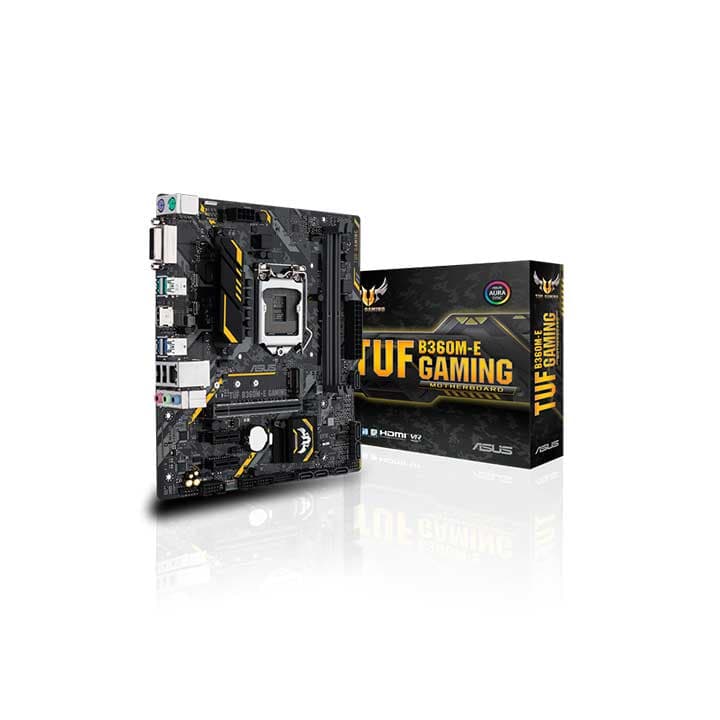

ASUS TUF GAMING B360M-E
₱2,500₱2,699
Key Specifications:
| Socket | LGA 1151 |
| Form Factor | Micro-ATX |
| Chipset | Intel B360 |
| Memory | 2 x DDR4 DIMM slots, up to 32GB |
1
Chipset
ChipsetIntel B360
CPU
CPU SocketLGA 1151
Supported CPUIntel 8th Gen Core, Pentium Gold, and Celeron Processors
Memory
Memory Slots2 x DDR4 DIMM
Memory SupportDDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Maximum Memory32GB
Memory ArchitectureDual Channel
Expansion Slots
PCI Express x16 Slots1 x PCIe 3.0/2.0 x16 slot (supports x16 mode)
PCI Express x1 Slots2 x PCIe 3.0/2.0 x1 slots
Storage
SATA 6Gb/s Ports6
M.2 Slots1 (supports PCIe 3.0 x4 & SATA mode)
Audio
Audio CodecRealtek ALC887
Audio Channels8-Channel High Definition Audio
LAN
LANRealtek RTL8111H Gigabit LAN
USB Ports
USB 3.1 Gen 1 (USB 3.0) Ports4 (2 on back panel, 2 via internal connector)
USB 2.0 Ports6 (4 on back panel, 2 via internal connector)
Rear Panel I/O Ports
PS/21 x PS/2 keyboard/mouse combo port
HDMI1 x HDMI
DVI-D1 x DVI-D
LAN (RJ45) port1
USB 3.1 Gen 1 (USB 3.0) ports2
USB 2.0 ports4
Audio jacks3
Internal I/O Connectors
USB 3.1 Gen 1 (USB 3.0) connector1 (supports 2 ports)
USB 2.0 connector1 (supports 2 ports)
SATA 6Gb/s connectors6
M.2 Socket 3with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x4 mode)
CPU Fan connector(s)1
Chassis Fan connector(s)2
24-Pin EATXPower connector
8-Pin ATX 12VPower connector
Front panel audioconnector (AAFP)
System panelconnector
COM portheader
Clear CMOSjumper
BIOS
BIOS128 Mb Flash ROM, UEFI AMI BIOS
Form Factor
Form FactorMicro-ATX
Dimensions9.6 inch x 8.9 inch ( 24.4 cm x 22.6 cm )
Dominate your game with the ASUS TUF GAMING B360M-E motherboard! Built for serious gaming and durability, this micro-ATX motherboard offers robust performance and stability thanks to its military-grade components and comprehensive cooling solutions. Experience seamless gameplay and exceptional audio quality, all while enjoying a sleek and stylish design.
