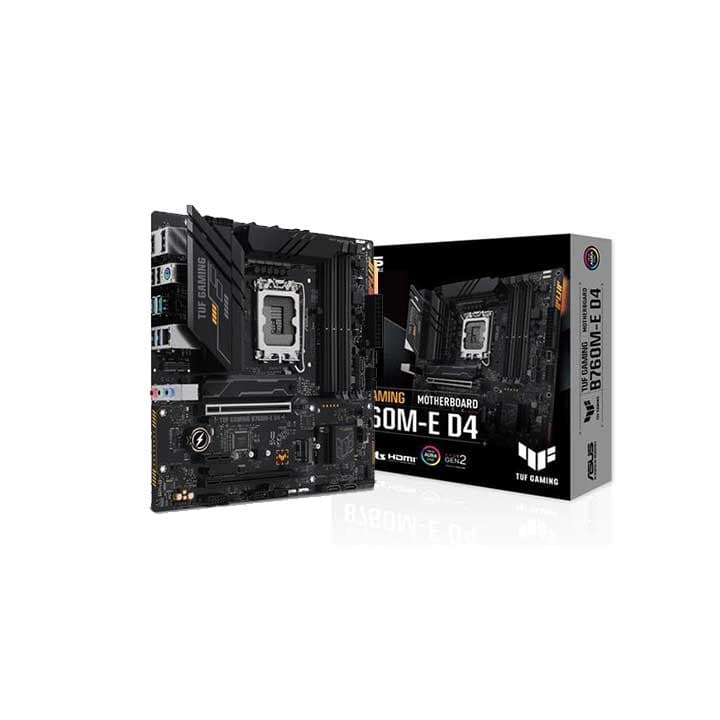

ASUS TUF B760M-E D4
₱9,200₱9,599
Key Specifications:
| Socket | LGA 1700 |
| Form Factor | Micro-ATX |
| Memory | 4 x DDR4 DIMM slots, up to 128GB |
| Storage | 2 x M.2 slots, 4 x SATA 6Gb/s ports |
1
CPU
Supported CPUIntel Core, Pentium Gold and Celeron Processors (12th & 13th Gen)
CPU SocketLGA 1700
Chipset
ChipsetIntel B760
Memory
Memory TypeDDR4
Memory Slots4 x DIMM
Maximum Memory Capacity128GB
Memory ArchitectureDual Channel
Memory Speed5333(OC)/5200(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
ECC Memory SupportSupports ECC Un-buffered memory (Operate in non-ECC mode)
Expansion Slots
PCIe 5.0 x16 Slots1
PCIe 4.0 x16 Slots0
PCIe 4.0 x4 Slots0
PCIe 3.0 x1 Slots1
Storage
M.2 Slots2 x M.2 slots (Key M)
SATA 6Gb/s Ports4
LAN
LAN1 x Intel 2.5Gb Ethernet
USB
Rear USB Ports4 x USB 3.2 Gen 1 ports (4 x Type-A) , 2 x USB 2.0 ports (2 x Type-A)
Front USB Ports1 x USB 3.2 Gen 1 connector (supports 2 USB 3.2 Gen 1 ports), 1 x USB 2.0 connector (supports 2 USB 2.0 ports)
Audio
Audio CodecRealtek 7.1 Surround Sound High Definition Audio CODEC
Audio FeaturesAudio Shielding, Premium audio capacitors
Back Panel I/O Ports
HDMI Port1 x HDMI port
DisplayPort1 x DisplayPort
USB Ports4 x USB 3.2 Gen 1 ports (4 x Type-A), 2 x USB 2.0 ports (2 x Type-A)
LAN (RJ45) ports1
Audio Jacks3
BIOS Flashback Button1
Internal I/O Connectors
Fan Headers1 x 4-Pin CPU Fan Header, 3 x 4-Pin Chassis Fan Headers
Power Connectors1 x 24-Pin Main Power Connector, 1 x 8-Pin +12V Power Connector
Storage Connectors2 x M.2 slots (Key M), 4 x SATA 6Gb/s ports
USB Connectors1 x USB 3.2 Gen 1 connector (supports 2 USB 3.2 Gen 1 ports), 1 x USB 2.0 connector (supports 2 USB 2.0 ports)
Other Connectors1 x Front Panel Audio Connector, 1 x COM Port Header, 1 x Thunderbolt (USB4) Header, 1 x Clear CMOS Header, 1 x Speaker Header, 1 x Chassis Intrusion Header
Form Factor
Form FactorMicro-ATX
Dimensions24.4cm x 24.4cm
Unleash the power of your next-generation build with the ASUS TUF B760M-E D4 motherboard. This mATX powerhouse boasts robust features, military-grade components, and comprehensive cooling solutions for unwavering performance and stability. Designed for gamers and enthusiasts, it supports the latest Intel processors and offers a wide array of connectivity options.
