AWP
AWP AID1000 ECO - AWP PERIPHERALS | Buy at UniPC

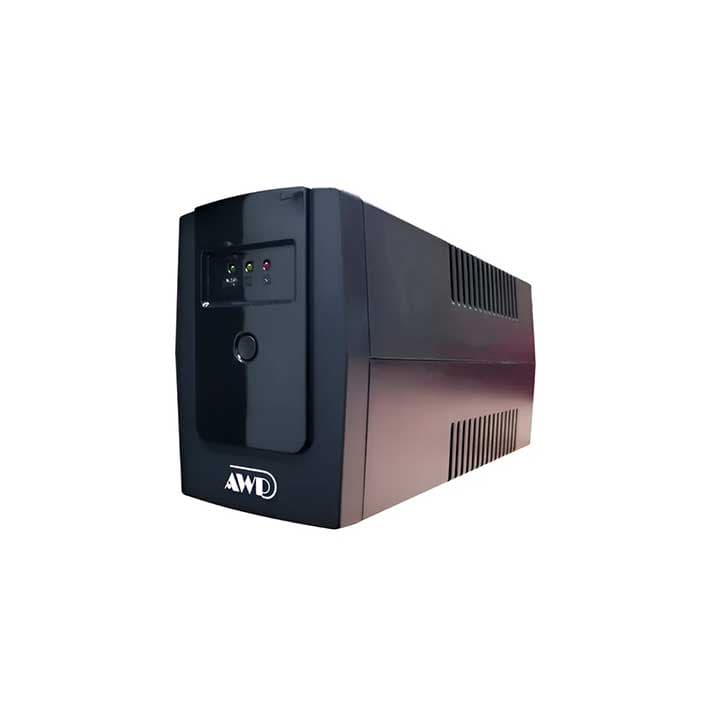

AWP AID1000 ECO

₱2,250₱2,399

Key Specifications:

Capacity1000VA / 600W
Input Voltage Range140-300 VAC
Output WaveformSimulated Sine Wave
Typical Transfer Time2-6 ms

General

ModelAID1000 ECO
BrandAWP
Form FactorTower

Capacity

VA Rating1000 VA
Watt Rating600 W

Input

Nominal Input Voltage230 VAC
Input Voltage Range140-300 VAC
Input Frequency50/60 Hz (Auto-sensing)

Output

Output Voltage230 VAC
Output WaveformSimulated Sine Wave
Output Frequency (on battery)50/60 Hz +/- 1 Hz
Transfer Time2-6 ms (Typical)

Battery

Battery TypeSealed Lead-Acid
Typical Recharge Time6-8 hours to 90%

Protection & Features

Surge ProtectionYes
Overload ProtectionYes
Automatic Voltage Regulation (AVR)Yes

Indicators & Controls

LED IndicatorsPower On, Battery, Overload

Ports & Connectivity

Output Receptacles2 x IEC C13
Input ConnectionIEC C14
Communication PortOptional USB

Environmental

Operating Temperature0°C - 40°C
Operating Humidity0-90% RH (Non-condensing)
